Description

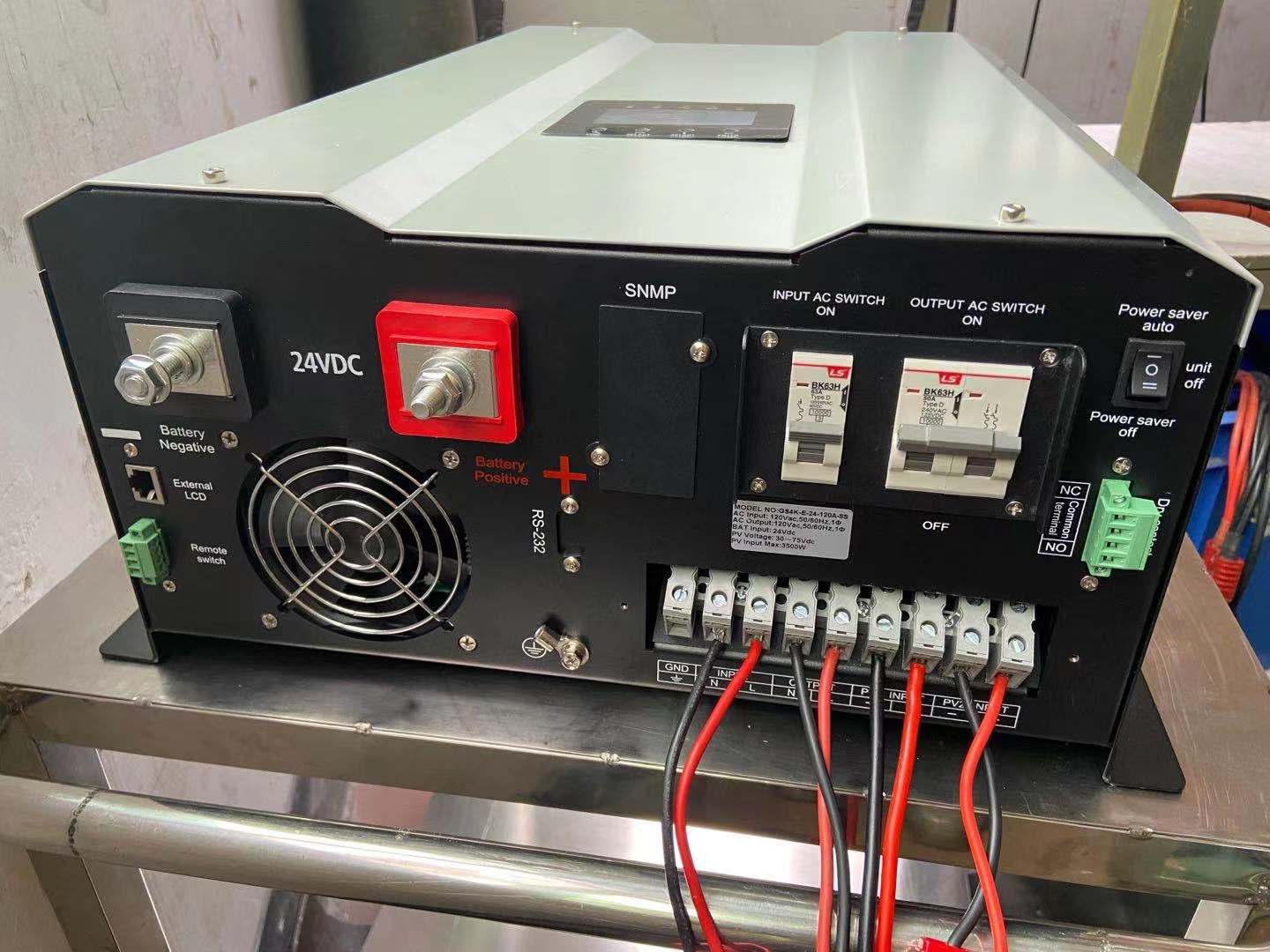

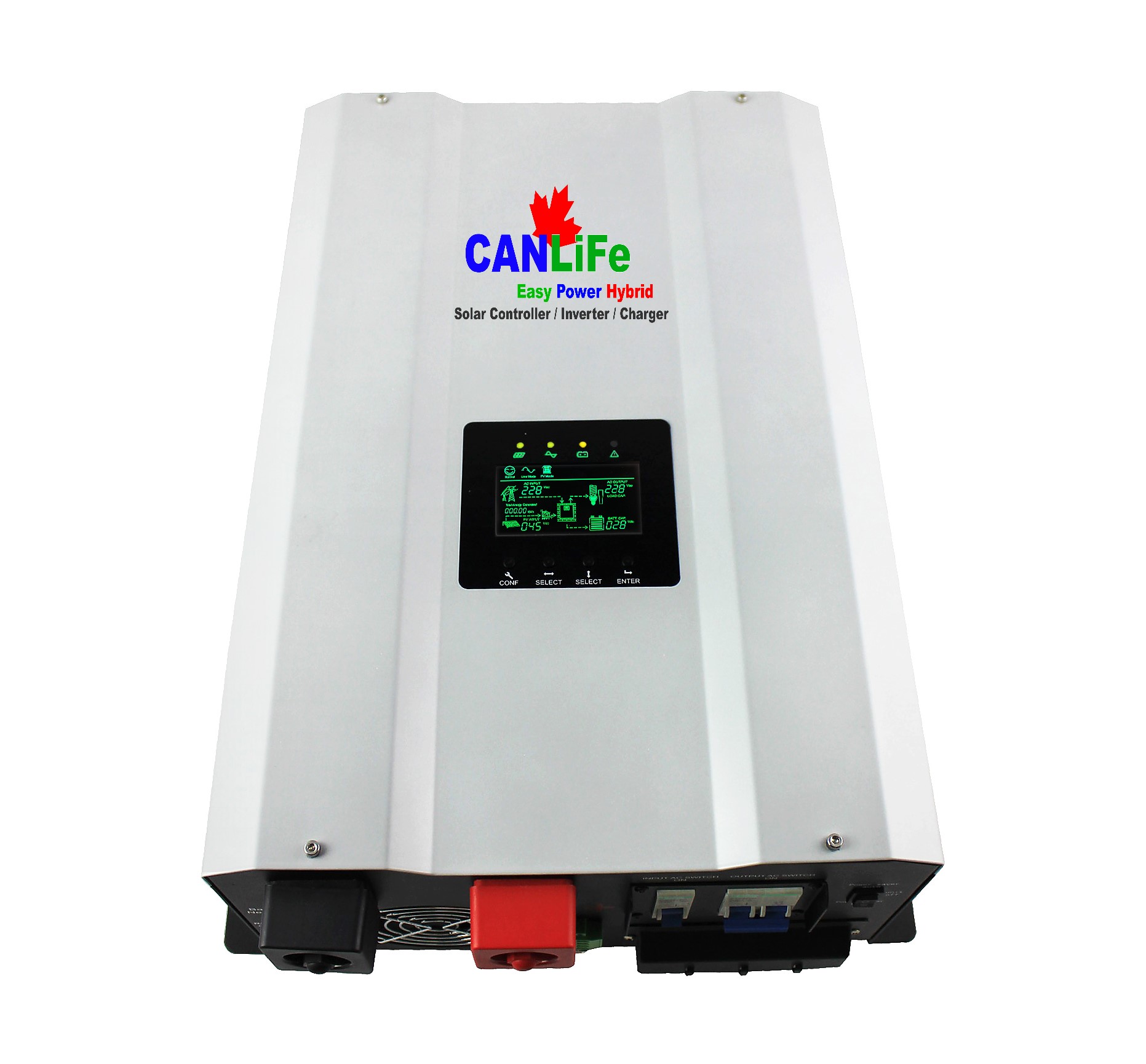

   CanLiFe Easy Power Hybrid 24 Volt 4000 Watt Pure Sine Wave Inverter, Dual 60 Amp 145 Volt Input MPPT Solar Charge Controller (Can Handle 3500 Watts) And Integrated Smart Multi-Stage 70 Amp Battery Charger

In Stock Ready To Ship

   The CanLiFe Easy Power Hybrid Series of Multi-Function Inverters, combine the functions of  a Pure Sine Wave Power Inverter, MPPT Solar Charge Controller, and Smart Battery Charger with Integrated System Protection to offer the most Convenient All-In-One solution for any Off Grid or Grid Interconnected Solar Power System With Battery Backup.

   The Comprehensive LCD Display Offers Quick Glance System Vitals And Intuitive menu’s With Easily Adjustable Settings Such As Battery Type, Charger Output, AC Versus Solar Charger Priority.

Components Built In Or Included:

• Inverter (24 Volt Input, 4 kW/12KW Peak, 120VAC Single Phase Output Pure Sine Wave)
• Dual 60 Amp MPPT Solar Charge Controllers – Can Handle 1750 Watts Each, 3500 Watts Total
• Maximum Solar Input (145 Volts 3.5kW)
• DUAL 63 Amp PV Input Breaker
• 50 Amp AC Breaker
• DC Monitor
• AC Monitor
• Generator Autostart Signal
• 6 Foot 4/0 UltraFlex Inverter Cables
• MC-4 Quick Connectors
• 300 Amp DC Input Fuse

Key Features:

• 24 Volt Input, 4KW (4000 Watt) Pure Sine Wave Output With 12KW (12000 Watt) Surge Capability
• 145 Volt 60 Amp MPPT Solar Charge Controller, Can Accept Up To 3500 Watts Of Solar Modules – 98% Efficient
• Powerful 5 Stage Adjustable Charge Rate Up To 50 Amps
•  Automatic Generator Start Capability
•  Accepts Multiple Input Sources; Solar, Generator And Hydro (Can Be Used As A UPS). Hybrid Mode Utilizes Solar As The Primary Source With Hydro As The Back Up.
•  Smart LCD Display Shows (Input Mode, AC Input/Output, PV Input, Battery Capacity And Total Energy Generated)
  Pure Sine Wave Output, 3 Times Output Surge Capability
•  DC Start & Automatic Self-Diagnostic Function
•  Multiple Battery Charge Profiles Including Lead Acid, AGM, Lead Carbon, Silicon Gel, & LiFeP04
• Built In Input And Output Breakers With Short Circuit, Low Voltage And Over Voltage Protection
• Quiet operation Less Than 60DB
• 2 Year Warranty – Canadian Based Warranty And Off Warranty Repair Service

Dimensions

• Unit Weight: 42.5 KG (93 lbs.)
• Unit Size 530L x 400W x 190H millimeters (20.9 x 15.8 x 7.5 inches)
