Description

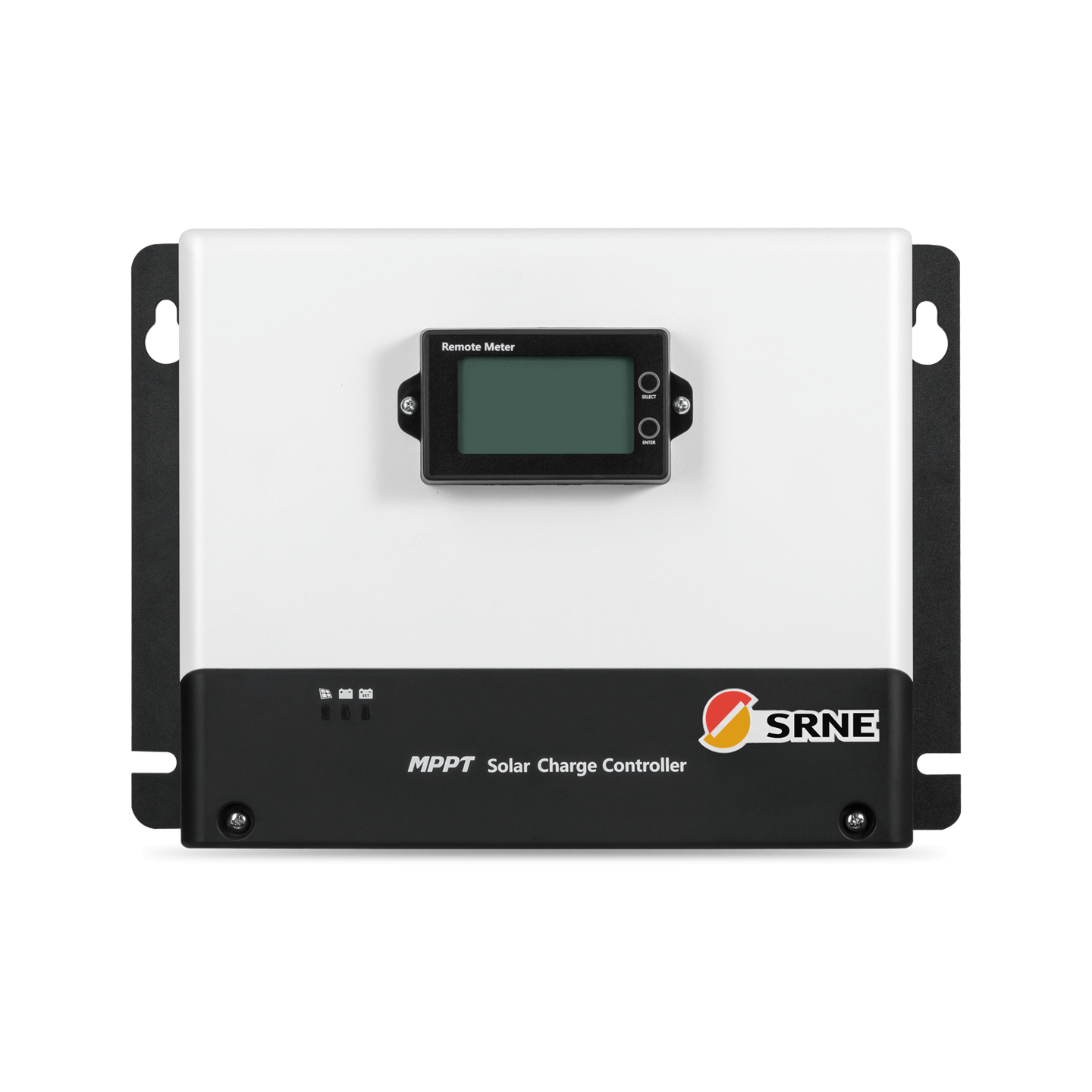

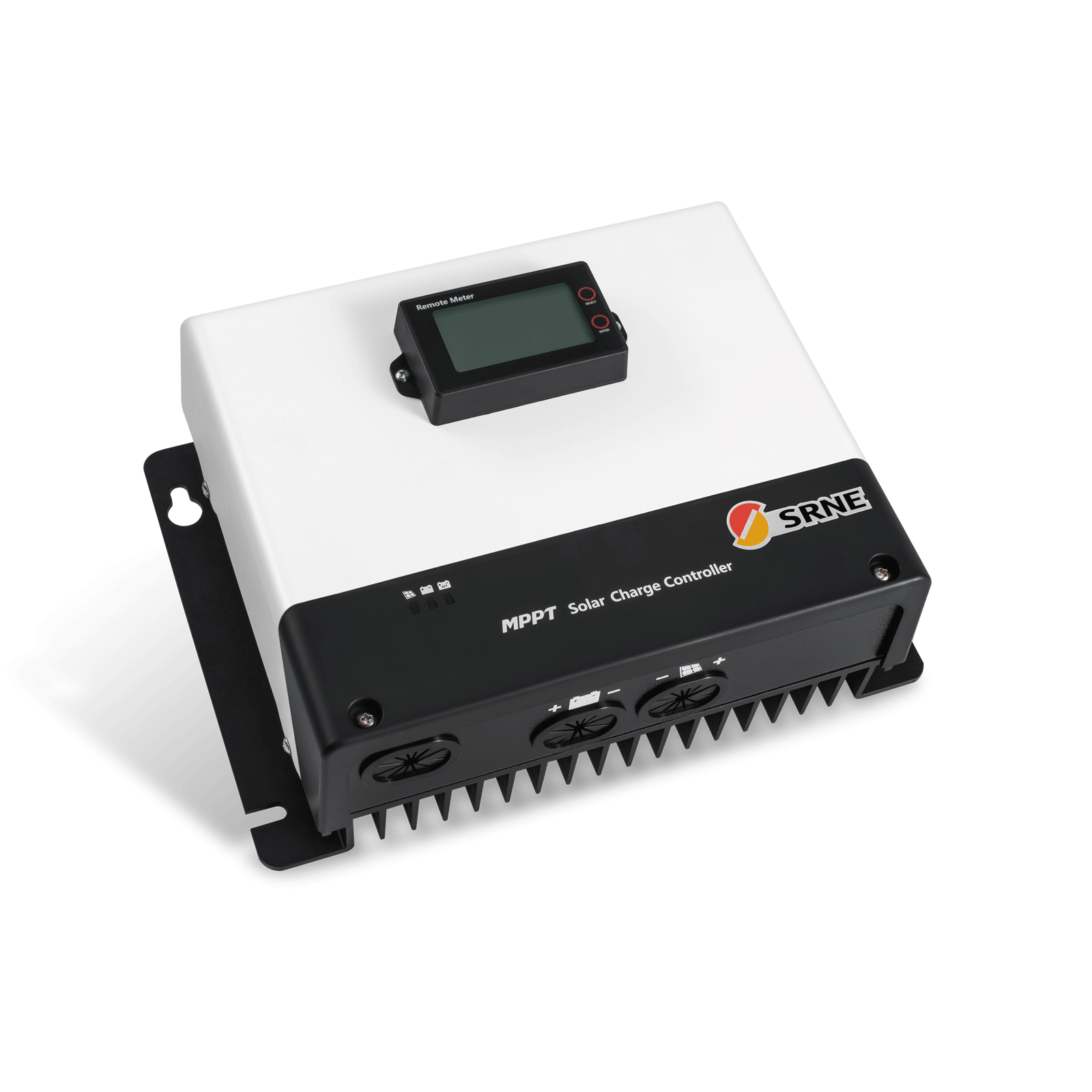

SRNE Solar MPPT 150/100 – SR- MC48100N15
150 Volt 100 AMP Charge Controller – 12/24/48 Volt
This Controller Can Handle:
1320 Watts @ 12 Volts
2640 Watts @ 24 Volts
5280 Watts @ 48 Volts
The SRNE MPPT 150/100 Can Charge The Following Types Of Batteries:
- Flooded Lead Acid
- AGM
- Gel
- Lithium Iron Phosphate (LiFeP04)
- Lithium Cobalt Oxide (LiCoO2)
- SiO2
- Lead Carbon & Carbon Foam
MPPT-MC Series Specification Sheet
MPPT: Ultra Fast Maximum Power Point Tracking
â—† With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels even in a complex environment. It has higher response speed and tracking efficiency compared with those controllers with traditional MPPT technology.
â—† The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.
â—† MPPT Tracking efficiency is up to 99.9%.
â—† Advanced digital power technology raises the circuit energy conversion efficiency to 98%.
â—† The controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
â—† Supports charging lithium batteries (LiFeP04 And LiCoO2), gel batteries, sealed batteries and vented batteries, etc.
â—† This controller has an overheat protection mechanism. With charging line loss compensation, the voltage of the battery terminal can be accurately controlled.
â—† This controller features a limited current charging mode. When the solar panel power exceeds a certain level and charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
â—† This controller features an overheat protection mechanism. When the temperature exceeds the set value, the charging current will decline in linear proportion and discharging will be shut off so as to curb the temperature rise of the controller and keep the controller from being damaged by overheat.
â—† Supports parallel operation as solar requirements grow over time
â—† With integrated blue-tooth 4.0 BLE module, Connects to the interactive SRNE APP available from the iTunes and Android Stores for use on mobile phones or tablets.
â—† Supports standard Modbus protocol and provides protocol technology support to facilitate secondary development and application by users.
â—† Programmable relay output for lighting control
