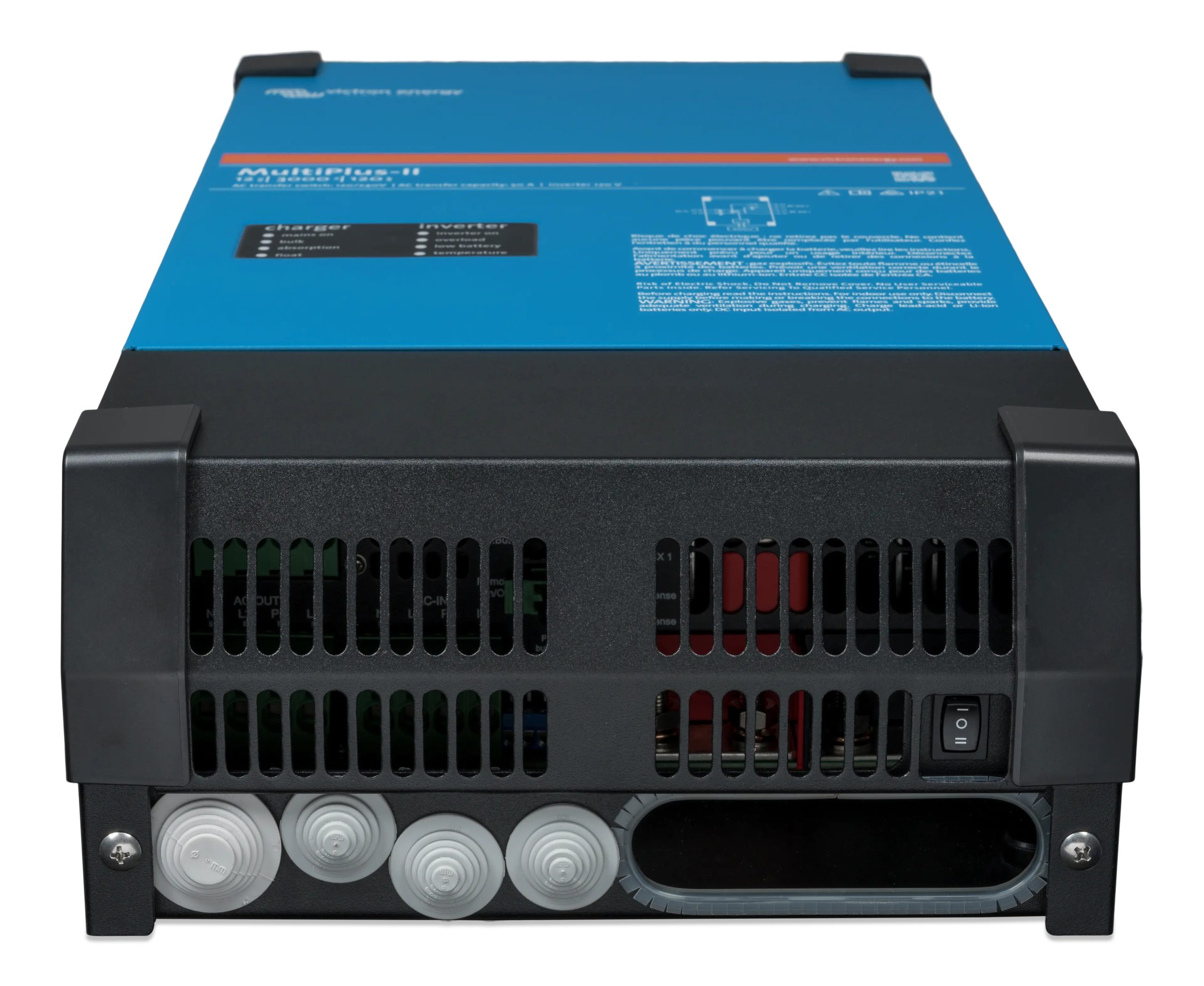

Victron Multiplus II 12/3000/120-50 2 x 120V – 120 Volt AC 3000 VA Output Pure Sine Wave Power Inverter With Integrated 50 Amp Charger And 50 Amp Transfer Switch – 12 Volt Input – With V.E. Bus
Designed For 50 Amp Trailer/RV Systems
Free 5 Foot Long 4/0 Ultraflex Inverter Cable Set Included Free Of Charge!! Plus Shipping On Victron Items Is Free!
The MultiPlus-II 2 x120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator, the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply, with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply, the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough, while combining the L1 and L2 outputs for single-phase 120V on each line.
The Victron MultiPlus II 12/3000/120-50 switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode, the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore, in all connection circumstances, both sides of a distribution panel will be supplied with 120V. However, 240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.
The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.
Similar Products: Victron Multiplus Compact 12/2000/80-50 | Victron Multiplus 12/3000/120-50
