Victron RV/Sprinter Van Pre-Wired Power Board System 2.4KW
Victron RV/Sprinter Van Pre-Wired Power Board System 12V2.4KW – Victron Power Systems

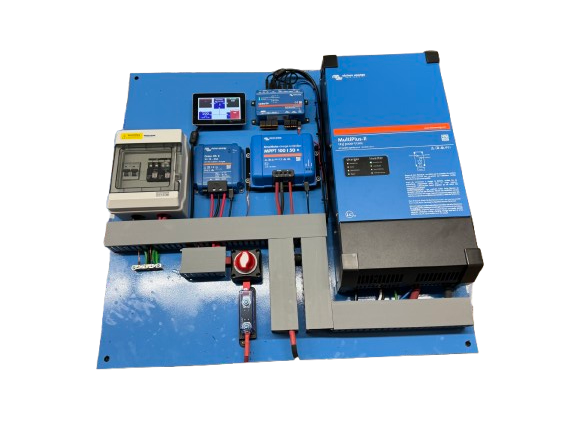

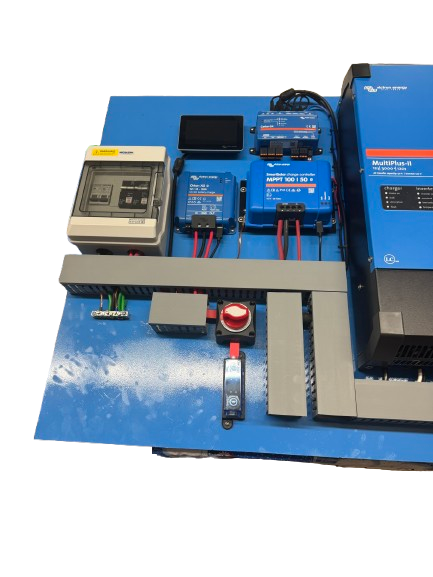

Pre-Wired (In Canada!) Victron BlueBoard Power Panel with 2400 Watt Inverter, 120 Amp Integrated Charger, Orion XS 50 Amp Battery To Battery Charger, 50 Amp MPPT Solar Controller (Handles 700 Watts @ 12 Volts), Smart Shunt, Cerbo GX System Hub With 5″ LCD Touch Screen (Which Can Be Remote Mounted and Solar Charger
Model: BlueBoard 12V2.4KW

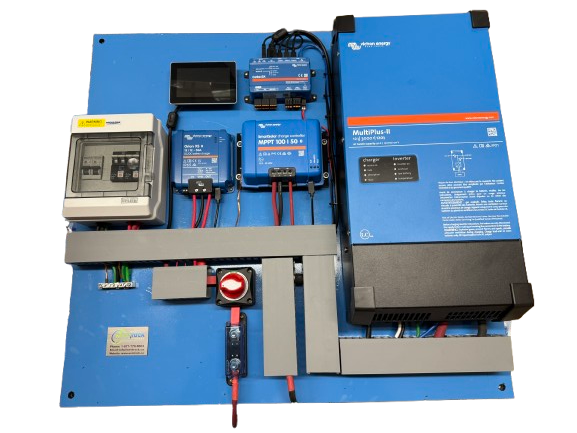

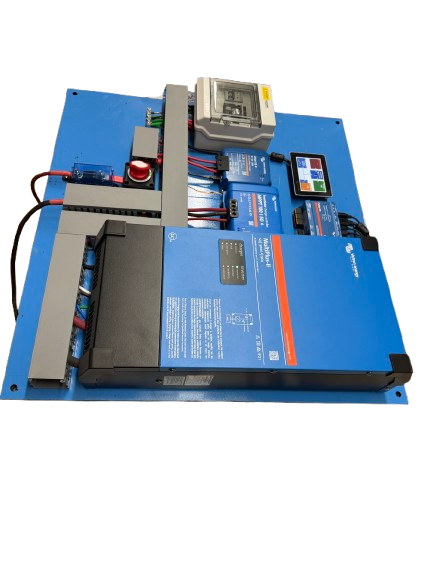

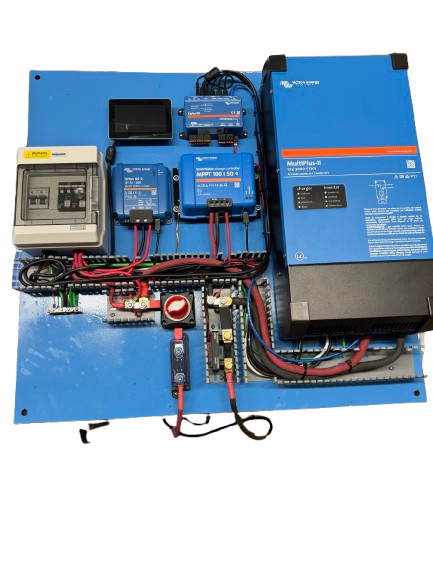

Pre-wired Power Panel consisting of:
- Free Electrical Wire Diagram and Communication Wire Diagram For Simplified Future Upgrades & Maintenance
- Fire Proof HDPE 1/2″ Thermoplastic Board Measuring 24 x 36 Inches
- MultiPlus-II 12/3000/120-50 120V (UL 458) Inverter/Charger PMP122305122
- SmartSolar MPPT 100/50 Solar Controller SCC110050210
- Orion XS 12/12-50A DC-DC Battery To Battery Charger (Powered By Vehicle Alternator) ORI121217040
- SmartShunt 300A Battery Monitor SHU050130050
- Cerbo GX MK2 Communication Hub BPP900451100
- GX Touch 50 Touch Screen LCD 5 Inch BPP900455050

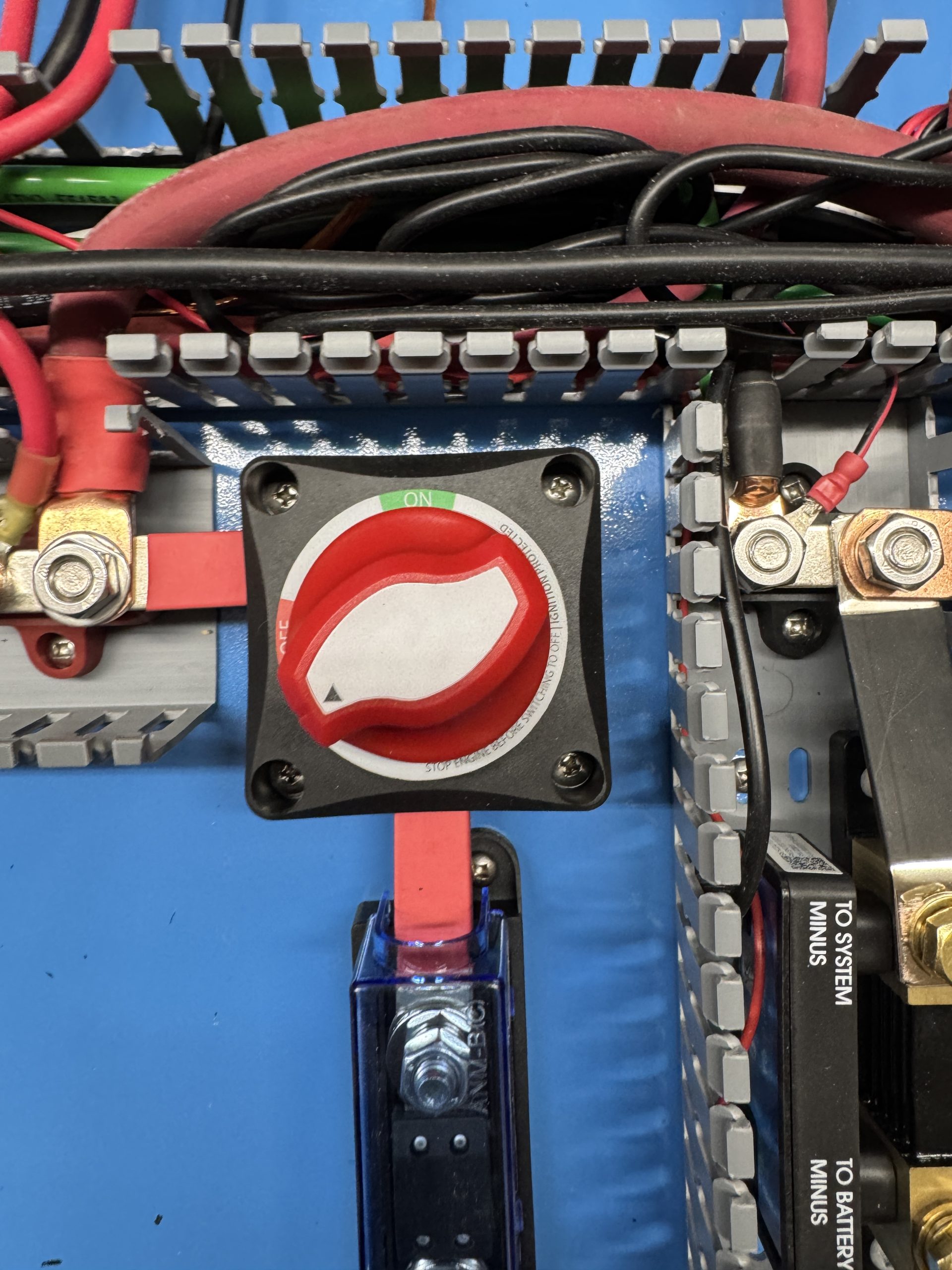

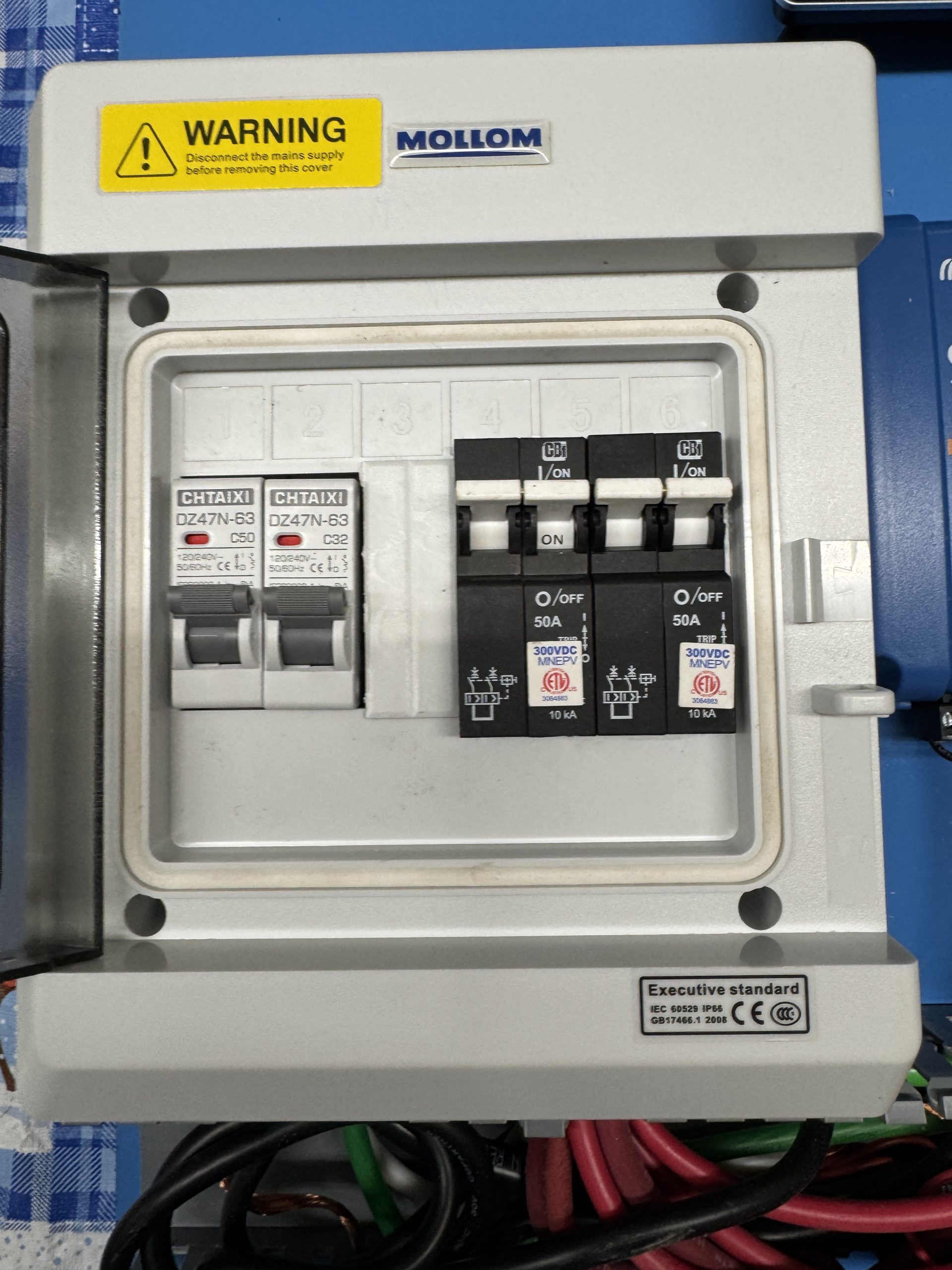

- Necessary Cables, Conduit, Fuses, AC & DC Breakers

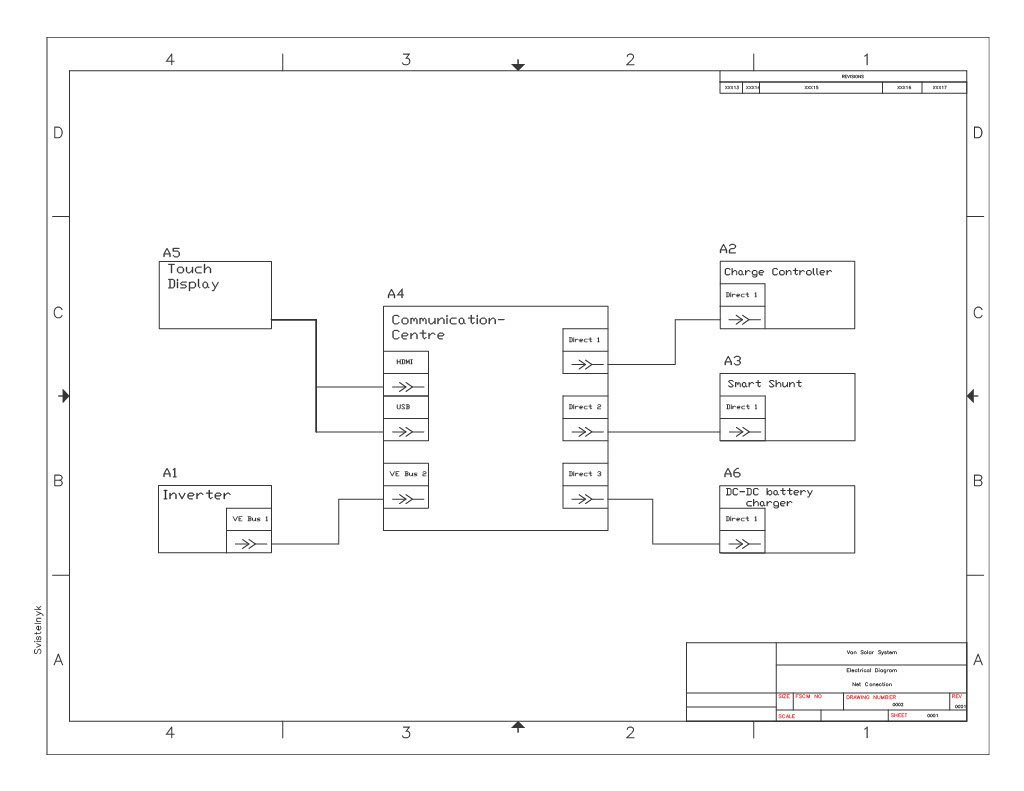

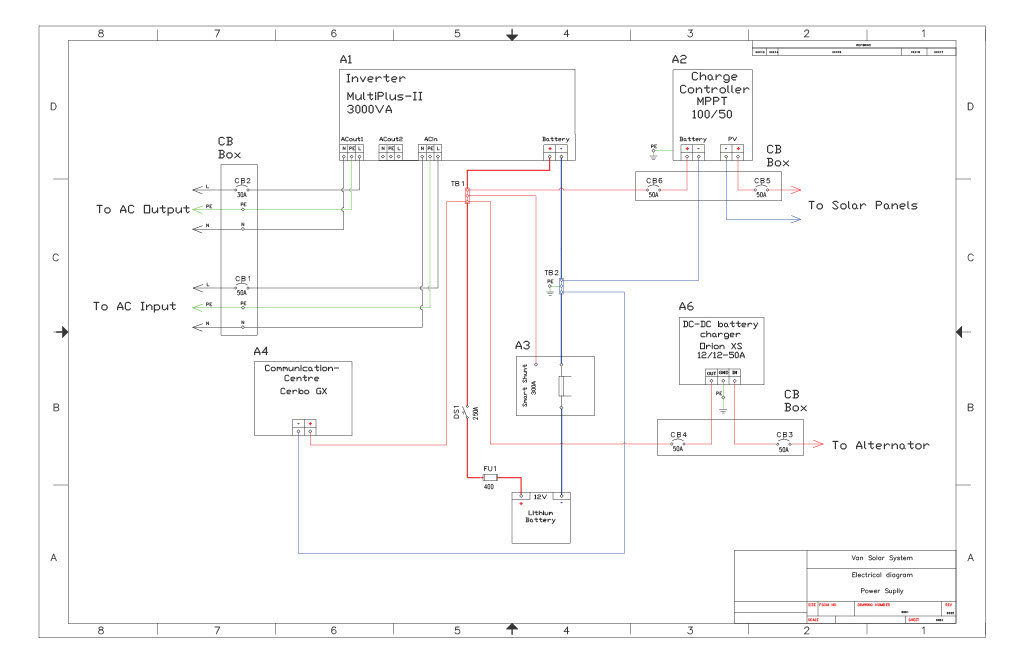

- Electrical Line Drawing & Communication Cable Diagram
- Backed By A 5 Year Warranty Which Is Administered In Canada With The Option To Purchase A 5 Year Extension For 10 Years Of Hassle Free Warranty Coverage.
Dimensions: Note That Custom Configured Panels to Fit Your Mounting Requirements Are Available
Width – 32″
Height – 30″
Depth – 6″
Weight – 82.5 Lbs.
The Victron Pre-Wired Power Panel is a high-quality, ready-to-install system designed for effortlessly charging 12V battery banks in off-road vehicles, RVs, Conversion Vans, Toy Hauler Trailers, and Boats. This panel is designed to produce 120 VAC battery from Solar, with option to supplement with 120V AC grid or Generator Supply, as well as quickly recharge with 12V DC engine alternator, making it one of the most versatile power solutions on the market.
Ideal for 100Ah to 800Ah battery banks, this system supports Lithium, AGM, Or Lead Acid Technologies And is built with premium Victron Energy components for reliability and efficiency. It’s securely mounted with stainless steel fasteners on a durable, HDPE Plastic backing plate With Pre-Drilled Holes For Easy Mounting and supports a maximum load output of 2400 Watts AC Continuously and up to 50 Amp DC Load.
Setting it up is simple—just download the free VictronConnect app on your smartphone and connect via the built-in Bluetooth. With the app, you can easily configure the included Victron Energy chargers to support Lead Acid, AGM, Gel, or Lithium (LiFePO4) batteries and monitor system performance in real-time.

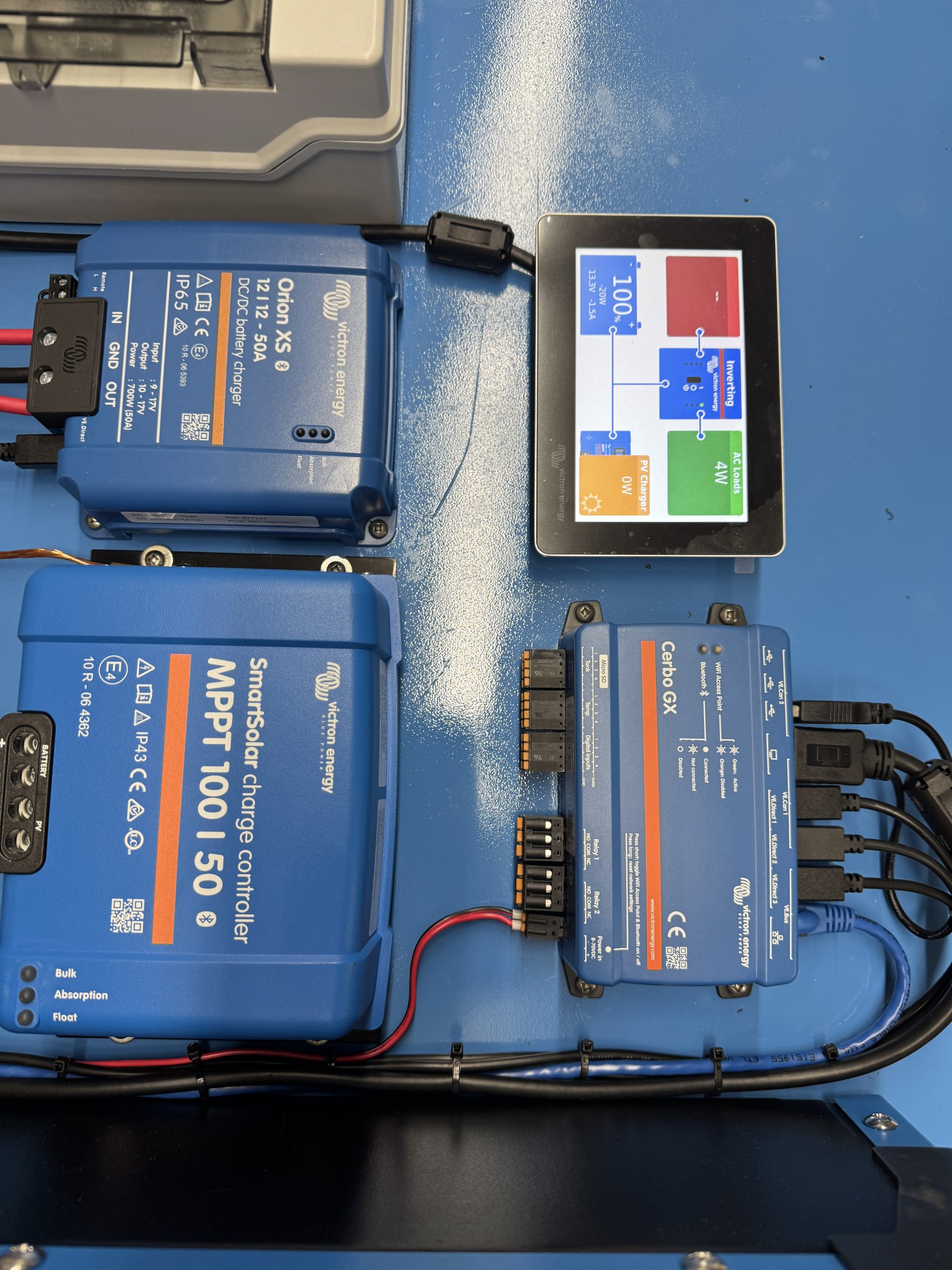

The Victron Cerbo GX MK2 paired with a 5″ GX Touchscreen, SmartShunt, SmartSolar Controller, and VRM (Victron Remote Monitoring) creates a powerful and intelligent energy management system. Here’s how each component enhances your setup:
1. Cerbo GX MK2 – The Brain of Your Power System
The Cerbo GX MK2 acts as the central communication hub, connecting all Victron devices in your system.
✅ Real-Time Monitoring & Control: View and manage your entire power system in real-time, from battery levels and charging sources to power consumption and generator status.
✅ Seamless Connectivity: Connect via WiFi, Bluetooth, or Ethernet to access system data remotely.
✅ Multi-Source Energy Optimization: Automatically prioritizes solar, grid, alternator, or battery power for maximum efficiency.
✅ Alarm & Notifications: Set up alerts for low battery, high loads, or system faults.
2. GX Touch 50 – Intuitive 5” Display for Easy Control
The GX Touch 50 is a sleek, touchscreen interface for the Cerbo GX.
✅ Instant System Overview: View battery state, charging sources, and energy flow at a glance.
✅ Quick Settings Adjustments: Easily change inverter/charger settings, battery charge profiles, and more.
✅ Wall or Panel Mounting: Compact design for easy installation in RVs, boats, or off-grid setups.
3. SmartShunt 300A – Precision Battery Monitoring
The SmartShunt replaces a traditional battery monitor by measuring real-time battery status and sending data via Bluetooth to the VictronConnect app or Cerbo GX.
✅ Accurate Battery Tracking: Monitor State of Charge (SoC), voltage, current, and power consumption.
✅ Bluetooth Connectivity: Check battery health from your phone or via the GX Touch.
✅ Simplified Wiring: No need for a separate display—data integrates directly into your Victron system.
4. SmartSolar MPPT 100/50 – Maximizing Solar Charging Efficiency
The SmartSolar MPPT (Maximum Power Point Tracking) 100/50 ensures your solar panels charge your batteries as efficiently as possible.
✅ Optimized Solar Harvesting: Tracks and adjusts to get maximum energy from your solar panels, even in cloudy conditions.
✅ Battery Protection: Prevents overcharging and extends battery life with custom charging profiles.
✅ Remote Monitoring: View solar performance via the VictronConnect app or Cerbo GX.
5. VRM (Victron Remote Monitoring) – Remote Access from Anywhere
The Victron Remote Monitoring (VRM) Portal allows you to monitor and control your system remotely from a phone, tablet, or computer.
✅ Global Access: Check your system status from anywhere in the world.
✅ Historical Data & Reports: Analyze energy consumption, solar production, and battery trends.
✅ Remote Troubleshooting: Adjust settings and diagnose issues without being on-site.
Key Benefits of This System Setup
✔ Seamless Integration: All components work together for a fully automated power system.
✔ Real-Time & Remote Monitoring: Stay in control whether you’re on-site or away.
✔ Maximized Efficiency: Optimize energy use and extend battery life.
✔ User-Friendly & Scalable: Expand with additional Victron devices as needed.
This Victron-powered setup is perfect for off-grid homes, RVs, boats, and backup power systems, providing a reliable, smart, and efficient energy solution. 🚀
Here are the Victron Energy Component Included on the Victron RV/Sprinter Van Pre-Wired Power Board System – Go to the Victron Energy website and search the model number to see the dataasheet (Ebay Won’t let us post links):
- MultiPlus-II 12/3000/120-50 120V (UL 458) Inverter/Charger (PMP122305122)
- SmartSolar MPPT 100/50 Solar Controller (SCC110050210)
- Orion XS 12/12-50A DC-DC Battery To Battery Charger (ORI121217040)
- SmartShunt 300A Battery Monitor (SHU050130050)
- Cerbo GX MK2 Communication Hub (BPP900451100)
- GX Touch 50 Touch Screen LCD 5 Inch (BPP900455050)
***Batteries & Solar Modules Not Included
